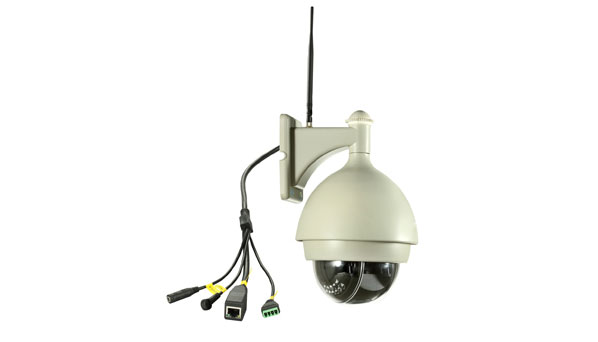

• VE-IP314PW-01

VE-IP314PW_P2P IP Camera

  • Color: Gray
  • IR led: 15-20 meters with 22 Ф5 IR LED
  • Pan/tilt: Pan:355°Tilt:90°
  • code: 128kbps ~ 4.096Mbps

1.0 MegaPixel;Free centralized monitoring software provided by manufacturer. Support multi-screen, long-time recording and video playback.

  • 1、Outdoor medium speed IP Dome Camera
  • 2、Video compression format: H.264/JPEG.
  • 3、Adopt 1 Megapixel CMOS sensor, support resolution: 720P (1280 * 720) (640 * 480) / (320 * 240)
  • 4、Support dual-stream (H.264 and M-JPEG), the image is more clear and fluent, support local, remote, cross-regional viewing.
  • 5、4-9mm Zoom Lens, 22 Ф5 IR LED(15-20m night vision distance)
  • 6、Support Micro SD card (Max 32G) For storage of photos and videos.
  • 7、Support the IR-CUT,which is infrared light automatically switching function, the color of objects without distortion , color cast when viewing.
  • 8、Support WIFI function.
  • 9、Support UPNP(plug and play) function.
  • 10、Support IR LED for night viewing , distance 15-20 meters, 24-hour uninterrupted monitoring .
  • 11、Built - in PTZ rotating function, horizontal ( 355 degree ) / vertical ( 90 degrees ) , adjustable speed 15 - 70 degree / sec.
  • 12、Support Android, Apple mobile phone client software( H.264 format, the image is more fluent).
  • 14、Support remote viewing video, can be recorded through a network connection.
  • 15、Adopt Multi-level user management and password management
  • 17、Support motion detection alarm function , support for external input , output alarm ,support email alarm and FTP upload.
  • 18、Adopt TCP/IP protocol and built-in Web Sever.
  • 19、Support 1,4,9,16,25,36,64 channel video viewing, support record, alarm, remote playback, records and other management functions.
  • 20、Free centralized monitoring software provided by manufacturer. Support multi-screen, long-time recording and video playback.
Language English, Simplified Chinese
Appearance Color Gray
Dimension(mm) **x**x**
IR led 15-20 meters with 22 Ф5 IR LED
Sensor image sensor 1.0 MegaPixel 1/4 CMOS Sensor
minimum illumination IR LED ON, 0.1 Lux
Lens f=3.6mm, F=2.0,standard match IR Camera
IR CUT Double switch filters
PT Pan/tilt Pan:355°Tilt:90°
video Resolution H264:1280*720/640*480/320*240/;MJPEG:640*480/320*240
Video compression format H.264/JPEG
Maximum frame rate 30fps/second(720P 25fps/second)
code 128kbps ~ 4.096Mbps
Reverse Vertical and Horizontal
720 other protocols 802.11b/g/n
Other features Mobile phone view Support Android mobile phones and iPhone view
Video control support
SD card storage SD card can storage the capture pictures and video, also remote browser and download the SD card content
Triggered Actions Email / FTP / SD storage / send message to the alarm server
User setting The third level user permission
Time/ Date setting support
upgrade upgrade through the network
DDNS domain support the customer's own application DDNS domain
Hardware interface Ethernet interface 10Base-T/100base-TX
Storage interface SD card slot
Power adaptor DC 5V
Power consumption <6W

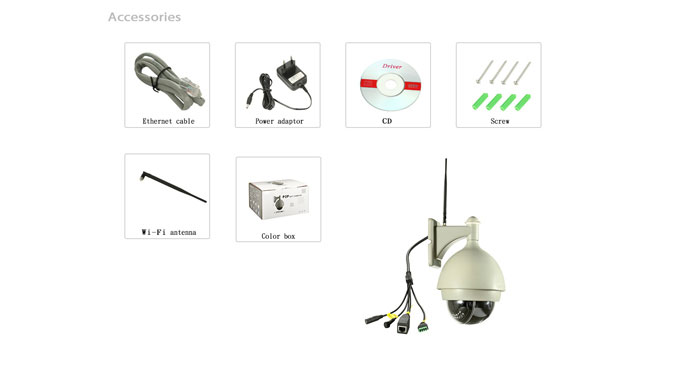

Accessories Power adaptor× 1
Screw × 1
Ethernet Cable × 1
Wi-F antenna × 1
CD × 1 (Include User manual PDF、Multi-channel surveillance software、Mobile phone browser、Searching tool)
