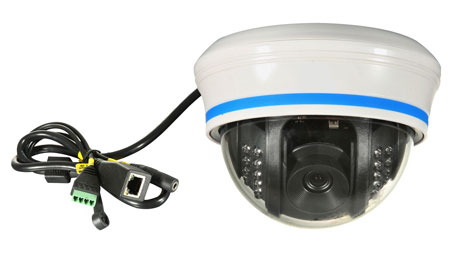

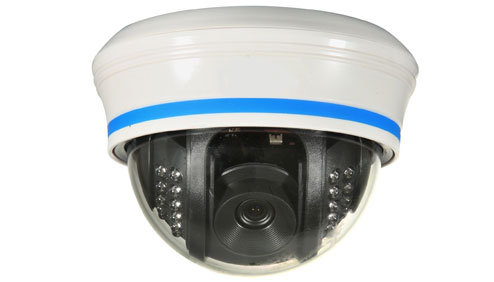

VE-IP312PW_P2P IP Camera

  • Size: 127*127*91mm
  • Color: White indoor dome(blue circle)
  • Sensor: 1 mega 1/4 CMOS sensor
  • IR Light: Ф5 22 IR light (night vision range 10-15m)

1.0 Megapixel;Support TCP/IP、HTTP、SMTP、RTSP、FTP、DHCP、DDNS、NTP protocols

  • 1、Megapixel HD CMOS sensor,Support the resolution:720P(1280*720)(640*480)/(320*240).
  • 2、Dual stream(H.264 and M-JPEG), more clear and fluency for local, remote, and across the regional to watch.
  • 3、Support TF card(32G Max) .
  • 4、Support Wifi
  • 5、Support UPNP (plug and play)
  • 6、Support night vision viewing, distance 10-15 meters, 24 hours uninterrupted monitoring。
  • 7、Support smart mobile phone view (android, iphone, , windows mobile ) (H.264 format, video is more fluent)
  • 8、Support video view by browsers like as IE, Firefox, safari etc
  • 9、Support remote viewing video and can record over a network connection。
  • 10、Adopt multi-level user management and password management
  • 11、Support TCP/IP、HTTP、SMTP、RTSP、FTP、DHCP、DDNS、NTP protocols
  • 12、Support motion detection alarm function , support for external input , output alarm ,support email alarm and FTP upload .
  • 13、Adopt TCP/IP network protocols and build in Web server
  • 14、Support 1,4,9,16,25,36,64video viewing, recording,alarm,remote playback, and other management function.
  • 15、Vendors provide free multi-screen central surveillance software to support multi-screen long time recording and video playback
Language English , Simple Chinese
Appearance Color White indoor dome(blue circle)
Size(MM) 127*127*91
IR Light Ф5 22 IR light (night vision range 10-15m)
Sensor Sensor 1.0 megapixel 1/4 CMOS sensor
Minimum illumination 0.1 Lux
lens f=3.6mm, F=2.0,standard infrared lens
Video Resolution H264:1280*720/640*480/320*240/;MJPEG:640*480/320*240
Video compression format H.264/MJPEG
frame rate 30fps/second (720P 25fps/second)
Code rate 128kbps ~ 4.096Mbps
Reverse Vertical/Horizontal
Audio compression format ADPCM
720 other Protocol 802.11b/g/n
Other features Mobile Phone view support android smart phone and iphone
Video control Support
Two-way audio Support
SD card storage SD can save and snap picture and video, remote browser and download records from SD card
Triggered Actions Email/FTP/external alarm/SD card storage/send message to alarm server
User settings 3 levels user rights
Time/date settings Support
Upgrade Upgrade from network
DDNS Support the DDNS which is applied by client
Hardware port Ethernet 10Base-T/100base-TX
Memory port SD card slot
Audio input Build in microphone
Video output Audio output jack
Current DC 5V/2A
Consumption <6W

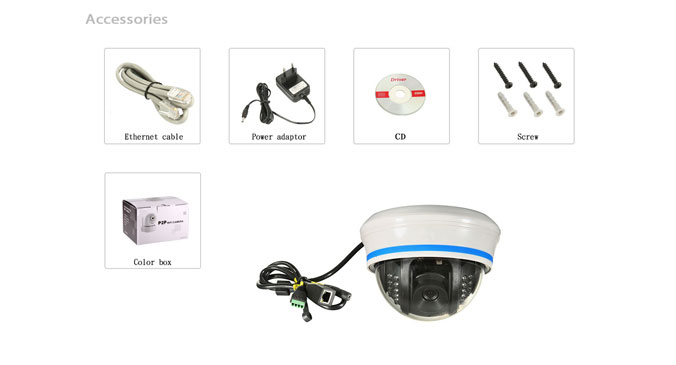

Accessories power × 1
Bag of screw × 1
Ethernet cable × 1
CD × 1 (PDF manual、central surveillance software、mobile phone viewing software、search tool)
