VE-IP310PTW_P2P IP Camera

  • Size: 105*100*130mm
  • Color: Black
  • IR Led: Ф5 12IR LED(night vision distance 10-15meters)

1.0 mega pixel;Support dual stream compression(H.264 and MJPEG) ,Images are more clear and smooth , suitable for local , remote , cross-regional viewing

  • 1、Adopt megapixel CMOS sensor, support resolution:720P(1280*720)(640*480)(320*240)
  • 2、Support dual stream compression(H.264 and MJPEG) ,Images are more clear and smooth , suitable for local , remote , cross-regional viewing
  • 3、Support 2 way audio, built in microphone.
  • 4、Support TF card(32G Max) to save the video and photo
  • 5、Support IR-CUT ,The infrared lights switch automatically ,can Objects' color no distortion, No partial color.
  • 6、Support Wifi
  • 7、 Support UPNP (plug and play)
  • 8、Support night vision viewing , distance 10-15 meters, 24 hours uninterrupted monitoring
  • 9、Support Pan tilt function, pan:330degree, tilt:90 degree
  • 10、Support Android, Iphone,mobile phone Client software . (H.264 format, video is more fluent)
  • 11、Support IE, Firefox, safari Browsing.
  • 12、Support remote viewing video and can record over a network connection.
  • 13、adopt multi-level user management and password management
  • 14、support TCP/IP、HTTP、SMTP、RTSP、FTP、DHCP、DDNS、NTP protocols
  • 15、 Support motion detection alarm function , support for external input , output alarm ,support email alarm and FTP upload.
  • 16、Adopt TCP/IP network protocols and built in Web server .
  • 17、Support 1,4,9,16,25,36,64video viewing,recording,alarm,remote playback, and other management function.
  • 18、Vendors provide free multi-screen central surveillance software to support multi-screen long time recording and video playback.
Language English Simple Chinese
Appearance Color Black
Size 105*100*130
IR Led Ф5 12IR LED(night vision distance 10-15meters)
Sensor Sensor 1.0 mega pixel 1/4 CMOS sensor
Minimum illumination 0.1 Lux
lens f=3.6mm, F=2.0,standard infrared lens
IR_CUT Double switch filters
Pan/Tilt PT Angle Pan: 330°tilt:90°
Video resolution H264:1280*720/640*480/320*240/;MJPEG:640*480/320*240
Video compression format H.264/JPEG
Frame rate 30fps/second (720P 25fps/second)
Code rate 128kbps ~ 4.096Mbps
Reverse Horizontal / Vertical
Audio compression format ADPCM
720 other Protocol 802.11b/g/n
Other features Mobile Phone view support android and iphone mobile phone
Video control Support
Two-way audio Support
SD card storage SD can save and snap picture and video, remote browser and download records from SD card
Triggered Actions Email/FTP/external alarm/SD card storage/send message to alarm server
User settings 3 levels user rights
Time/date settings Support
update Thru network
DDNS Support customer’s application for DDNS
Hardware interface Ethernet interface 10Base-T/100base-TX
Memory interface SD card slot
Video input Build in microphone
Video output Audio output jack
Current DC 5V/2A
consumption <6W

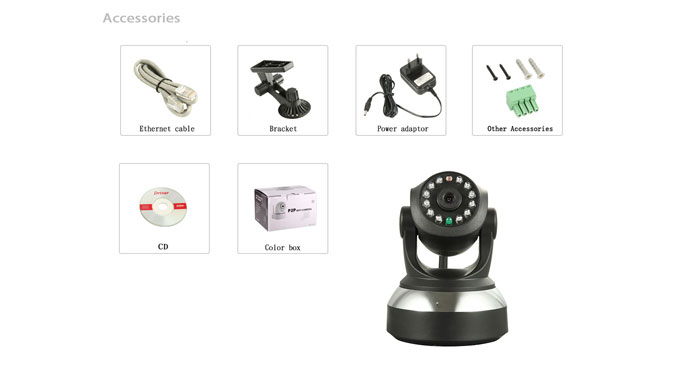

Accessories Power adaptor× 1
Bracket × 1
Bag of screw× 1
Ethernet cable × 1
Wi-Fi antenna × 1
CD × 1 (PDF manual、central surveillance software、mobile phone viewing software、search tool)
